Ram 1500/2500/3500: Driver Adjustable Pedals - If Equipped

The adjustable pedals system is designed to allow a greater range of driver comfort for steering wheel tilt and seat position. This feature allows the brake, accelerator, and clutch pedals (if equipped) to move toward or away from the driver to provide improved position with the steering wheel.

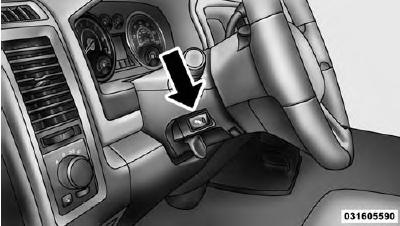

The adjustable pedal switch is located to the left side of the steering column.

Driver Adjustable Pedals - If Equipped
Adjustable Pedals Switch

  • The pedals can be adjusted with the ignition OFF.
  • The pedals cannot be adjusted when the vehicle is in REVERSE or when the Electronic Speed Control System is on. The following messages will be displayed on vehicles equipped with the Electronic Vehicle Information System (EVIC) if the pedals are attempted to be adjusted when the system is locked out ("Adjustable Pedal Disabled - Cruise Control Engaged" or "Adjustable Pedal Disabled - Vehicle In Reverse".

NOTE:

  • Always adjust the pedals to a position that allows full pedal travel.
  • Further small adjustments may be necessary to find the best possible seat/pedal position.
  • For vehicles equipped with Driver Memory Seat, you can use your Remote Keyless Entry (RKE) transmitter or the memory switch on the driver's door trim panel to return the adjustable pedals to pre-programmed positions. Refer to "Driver Memory Seat" in "Understanding The Features Of Your Vehicle" for further information.

CAUTION! Do not place any article under the adjustable pedals or impede its ability to move as it may cause damage to the pedal controls. Pedal travel may become limited if movement is stopped by an obstruction in the adjustable pedal's path.

WARNING! Do not adjust the pedals while the vehicle is moving.

You could lose control and have an accident. Always adjust the pedals while the vehicle is parked.
