Ram 1500/2500/3500: Driver Memory Seat - If Equipped
Ram Truck 1500 2500 3500 (2009 - 2018) Owner's Manual / Understanding The Features Of Your Vehicle / Driver Memory Seat - If Equipped
This feature allows the driver to store up to two different memory profiles for easy recall through a memory switch. Each memory profile contains desired position settings for the driver seat, side mirrors, adjustable pedals (if equipped) and a set of desired radio station presets. Your Remote Keyless Entry (RKE) transmitter can also be programmed to recall the same positions when the UNLOCK button is pressed.
NOTE: Your vehicle is equipped with two RKE transmitters.
One RKE transmitter can be linked to memory position 1 and the other transmitter can be linked to memory position 2.

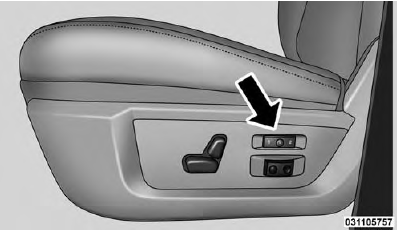

The memory seat buttons are located on the outboard side of the drivers seat cushion.
.png)
Memory Seat Buttons
- Programming The Memory Feature
- Linking And Unlinking The Remote Keyless Entry Transmitter To Memory
- Memory Position Recall
- Easy Entry/Exit Seat
READ NEXT:
Programming The Memory Feature
NOTE: To create a new memory profile, perform the
following:
Vehicles Equipped With Keyless Enter-N-Go
1. Without pressing the brake pedal, push the ENGINE
START/STOP button and cycle the ignition to
Linking And Unlinking The Remote Keyless Entry
Transmitter To Memory
Your RKE transmitters can be programmed to recall one
of two pre-programmed memory profiles by pressing the
UNLOCK button on the RKE transmitter.
NOTE: Before programming your RKE transmitters to
memo
Memory Position Recall
NOTE: The vehicle must be in PARK to recall memory
positions. If a recall is attempted when the vehicle is not
in PARK, a message will be displayed in the Electronic
Vehicle Information Center (EVIC).
SEE MORE:
Lap/Shoulder Belt Operating Instructions
1. Enter the vehicle and close the door. Sit back and
adjust the seat.
2. The seat belt latch plate is above the back of the front
seat, next to your arm in the rear seat. Grasp the latch
plate and pull out the belt. Slide the latch plate up the
webbing as far as necessary to allow the belt to go
a
ESC Activation/Malfunction Indicator Light And
ESC OFF Indicator Light
The "ESC Activation/Malfunction
Indicator
Light" in the instrument cluster will come on
when the ignition switch is turned to the ON
position. It should go out with the engine
running. If the "ESC Activation/Malfunction Indicator
Light" comes on continuously with the engine running, a malfunction h
