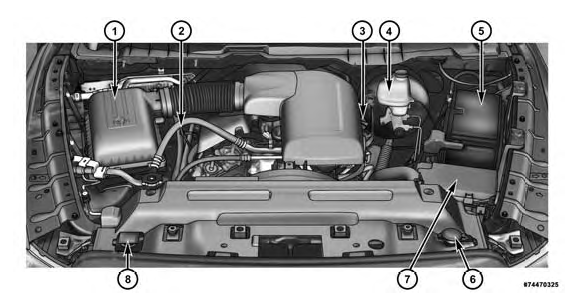

Engine Compartment - 3.6L

  1. Air Cleaner Filter
  2. Engine Oil Dipstick
  3. Engine Oil Fill
  4. Brake Fluid Reservoir
  5. Battery
  6. Washer Fluid Reservoir
  7. Power Distribution Center (Fuses)
  8. Engine Coolant Reservoir
