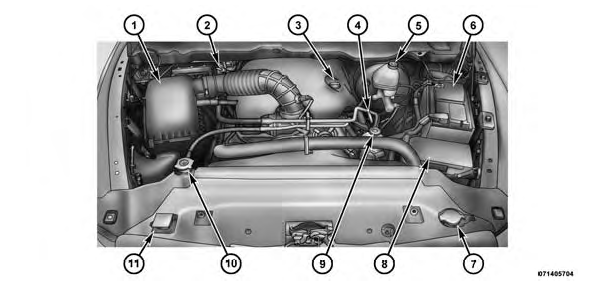

Engine Compartment - 5.7L

  1. Air Cleaner Filter
  2. Automatic Transmission Dipstick (6-Speed Trans Only)
  3. Engine Oil Fill
  4. Engine Oil Dipstick
  5. Brake Fluid Reservoir
  6. Battery
  7. Washer Fluid Reservoir
  8. Power Distribution Center (Fuses)
  9. Power Steering Fluid Reservoir (2500/3500 Models Only)
  10. Coolant Pressure Cap
  11. Engine Coolant Reservoir
