Ram 1500/2500/3500: Illuminated Vanity Mirror - If Equipped

Illuminated vanity mirrors are located on each sun visor.

To use the mirror, rotate the sun visor down and swing the mirror cover upward. The lights will turn on automatically.

Closing the mirror cover turns off the light.

Mirrors

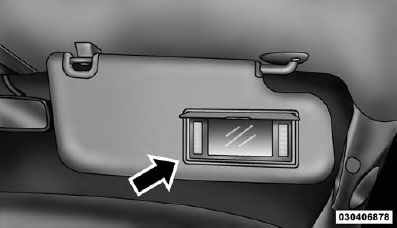

Illuminated Vanity Mirror

"Slide-On-Rod" Features Of Sun Visor - If Equipped

The sun visor "Slide-On-Rod" feature allows for additional flexibility in positioning the visor to block out the sun.

To use the "Slide-On-Rod" feature, rotate the sun visor downward and unclip it. Pull the sun visor along the "Slide-On-Rod" until the sun visor is in the desired position.

Mirrors

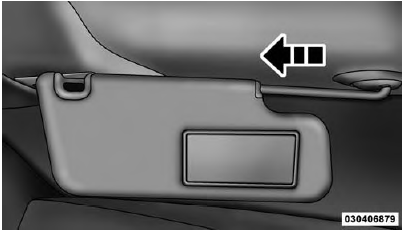

"Slide-On-Rod" Extender

Trailer Towing Mirrors - If Equipped

These mirrors are designed with an adjustable mirror head to provide a greater vision range when towing extra-wide loads. To change position inboard or outboard, the mirror head should be rotated (flipped in or out).

Mirrors

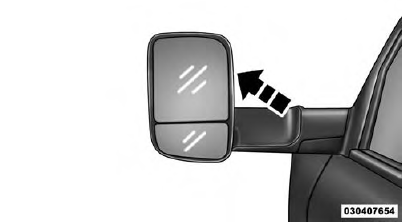

Trailer Towing Position

NOTE: Fold the trailer towing mirrors rearward prior to entering an automated car wash.

A small blindspot mirror is located next to main mirror and can be adjusted separately.

Mirrors

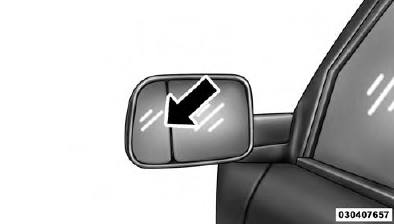

Blindspot Mirror
