Ram 1500/2500/3500: Overhead Console - If Equipped

The overhead console is located on the headliner above the review mirror. The overhead console contains the following features:

  • Courtesy/Reading Lights
  • Power Sunroof Switch - If Equipped
  • Power Sliding Rear Window Switch - If Equipped
  • Universal Garage Door Opener - If Equipped

Overhead Console - If Equipped

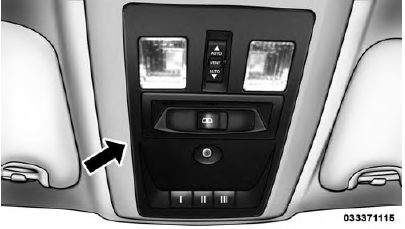

Overhead Console

Courtesy/Reading Lights

Both lights in the overhead console and rear passenger compartment will illuminate as courtesy lights when a door is opened, when the dimmer control is rotated to the courtesy light position (full right position), or when the UNLOCK button is pressed on the Remote Keyless Entry (RKE) transmitter, if equipped. These lights are also operated individually as reading lights by pressing on the corresponding lens.

Courtesy/Reading Lights

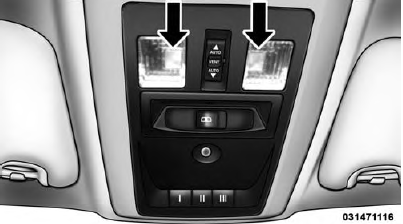

Front Courtesy/Reading Lights

Courtesy/Reading Lights

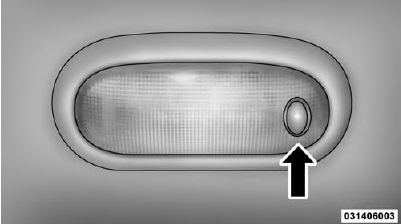

Rear Passenger Courtesy/Reading Light

NOTE: The courtesy/reading lights will remain on until the switch is pressed a second time, so be sure they have been turned off before leaving the vehicle. If the interior lights are left on after the ignition is turned OFF, they will automatically turn off after 15 minutes.
