Ram 1500/2500/3500: Power Mirrors - If Equipped

The controls for the power mirrors are located on the driver's door trim panel.

Mirrors
Power Mirror Controls Location

The power mirror controls consist of mirror select buttons and a four-way mirror control switch.

Mirrors

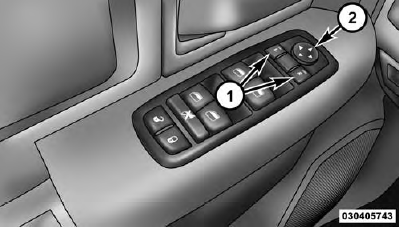

Power Mirror Controls

  1. Mirror Select Buttons
  2. Four-Way Mirror Control Switch

To adjust a mirror, press either the L (left) or R (right) button to select the mirror that you want to adjust.

Using the mirror control switch, press on any of the four arrows for the direction that you want the mirror to move

Mirrors

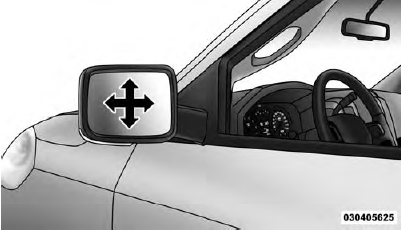

Power Mirror Movement

Heated Mirrors - If Equipped

These mirrors are heated to melt frost or ice. This feature can be activated whenever you turn on the rear window defroster (if equipped). Refer to "Rear Window Features" in "Understanding The Features Of Your Vehicle" for further information.

Driver's Outside Automatic Dimming Mirror - If Equipped

The driver's outside mirror will automatically adjust for glare from vehicles behind you. This feature is controlled by the inside automatic dimming mirror and will automatically adjust for headlight glare when the inside mirror adjusts.
