Ram 1500/2500/3500: Lower Anchors And Tethers For Children (LATCH) Restraint System

Occupant Restraints

Your vehicle is equipped with the child restraint anchorage system called LATCH, which stands for Lower Anchors and Tethers for CHildren. The LATCH system has three vehicle anchor points for installing LATCH-equipped child seats. There are two lower anchorages located at the back of the seat cushion where it meets the seatback and one top tether anchorage located behind the seating position. These anchorages are used to install LATCH-equipped child seats without using the vehicle's seat belts. Some seating positions may have a top tether anchorage but no lower anchorages. In these seating positions, the seat belt must be used with the top tether anchorage to install the child restraint. Please see the following table for more information.

LATCH Positions For Installing Child Restraints In This Vehicle

Occupant Restraints

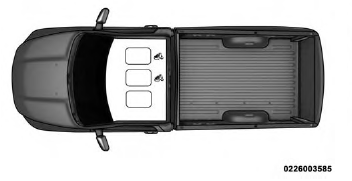

Standard Cab

Lower Anchorage Symbol 2 anchorages per seating position

Top Tether Anchorage Symbol

Occupant Restraints

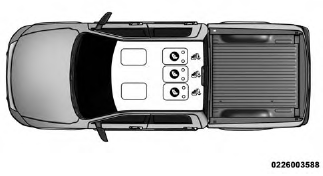

Quad Cab/Crew Cab Full Bench

Lower Anchorage Symbol 2 anchorages per seating position

Top Tether Anchorage Symbol

Occupant Restraints

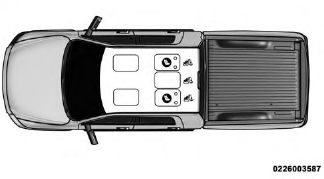

Quad Cab/Mega Cab/Crew Cab Split Bench

Lower Anchorage Symbol 2 anchorages per seating position

Top Tether Anchorage Symbol

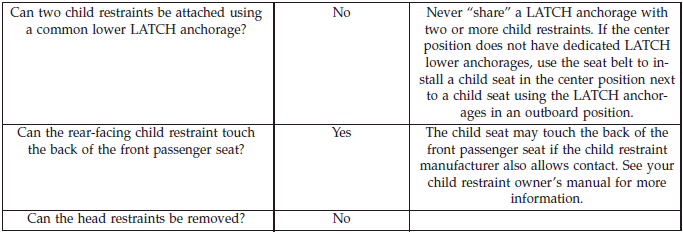

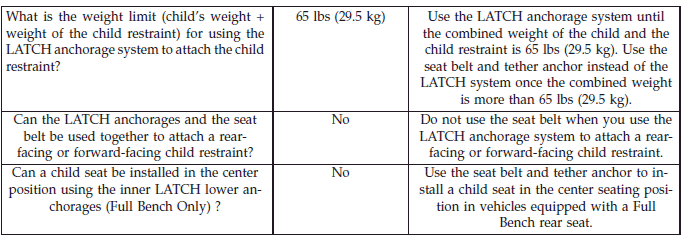

Quad Cab/Crew Cab

Occupant Restraints

Occupant Restraints

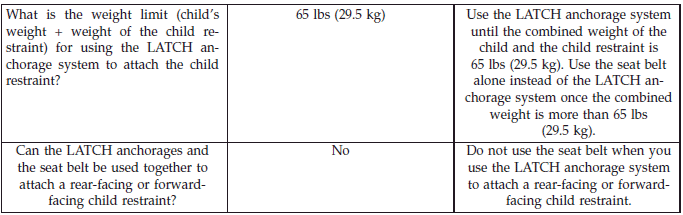

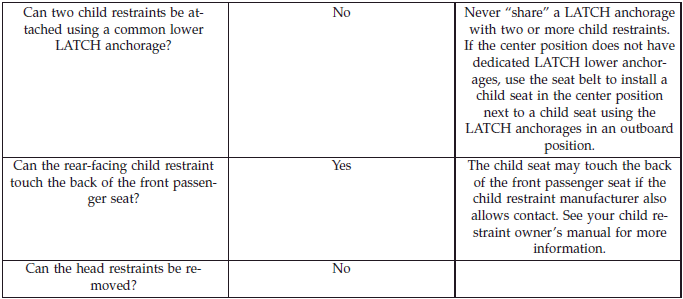

Mega Cab/Standard Cab

Occupant Restraints

Occupant Restraints
